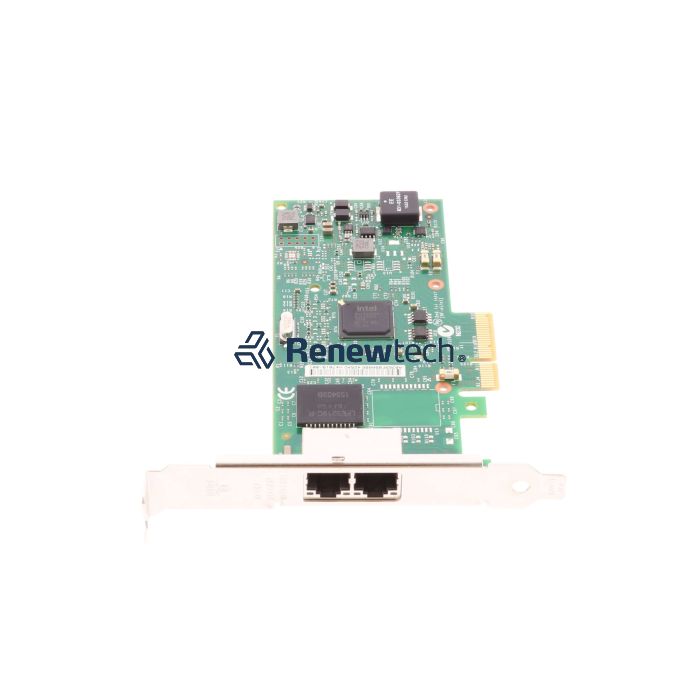

INTEL I350T2V2BLK - I350 1GB 2PORT I350T2V2BLK

Intel Ethernet Server Adapter I350T2V2
Zapasy:
2 szt.
Stan produktu:
Refabrykowany
Gwarancja:
1 rok
Oszczędność Co2:
5.41 KG.

Reviews

298,00 zł
netto
W przypadku zamówienia w ciągu będziemy wysyłać dzisiaj

Opis

Intel I350T2V2BLK. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specyfikacje

brand_ice INTEL
Co2 Savings 5.41
Wewnętrzny Yes
Przeznaczenie Server
Zestaw układów Intel® I350
Technologia łączności Wired
Interfejs hosta PCI Express
Standardowe rozwiązania komunikacyjne Ethernet
Ilość portów Ethernet LAN (RJ-45) 2
wersja PCI 2.1
Rozmiar karty PCI Full-height (low-profile)
Maksymalna szybkość przesyłania danych 1000 Mbit/s
Standardy komunikacyjne IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Przewodowa sieć LAN Yes
Prędkość transferu danych przez Ethernet LAN 1000 Mbit/s
Technologia okablowania 10/100/1000BaseT(X)
Pełny dupleks Yes
Obsługiwane protokoły sieciowe TCP, UDP, IP
Maksymalny zasięg działania 100 m
Kontroler LAN Intel® I350
Pobór mocy 5 W
Zakres temperatur (eksploatacja) 0 - 55 °C
Zakres temperatur (przechowywanie) -40 - 70 °C
Dopuszczalna wilgotność względna 35 - 90%
System operacyjny https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Szerokość produktu 68.9 mm
Głębokość produktu 135.4 mm
Typ przewodu Cat 5 up to 100m
Segment rynku Server
iWARP/RDMA No
Intel® Virtual Machine Device Queues (VMDq) Yes
Przechowywanie-przez-ethernet Yes
Inteligentny system odciążania Yes
Zgodny z PCI-SIG* SR-IOV Yes
Typ produktu Network Interface Card
Intel® Flexible Port Partitioning Yes
Typ procesora Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Identyfikator ARK adaptera sieci Ethernet 84804
Typ interfejsu PCIe v2.1 (5.0 GT/s)
On-chip QoS and Traffic Management Yes
Dostępne opcje low halogen No
Intel® Virtualization Technology for Connectivity (VT-c) Yes
Termiczny układ zasilania (TDP) 4.4 W
Intel® Ethernet Power Management Yes
Szybkość i szerokość slotu 5.0 GT/s, x4 Lane
Typ okablowania Cat 5 up to 100m
Rodzaj kontrolera Intel I350
Numer klasyfikacji kontroli eksportu (ECCN) 5A991.B.4.A
Wysokość wspornika Low-Profile (LP) / Full-Height (FH)
Zautomatyzowany system śledzenia klasyfikacji towarów (CCATS) NA
URL do instrukcji http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Rodaj karty sieciowej Server
Kabel karty sieciowej Copper
Ostatnia zmiana 63903513
Data premiery Q3'14
Status Launched
Storage Over Ethernet iSCSI, NFS
Rodzina produktów Intel Gigabit server adapter
Seria produktów Intel® I350
Nazwa kodowa produktu Powerville
Kod zharmonizowanego systemu (HS) 8517620090
